>>>Product Description

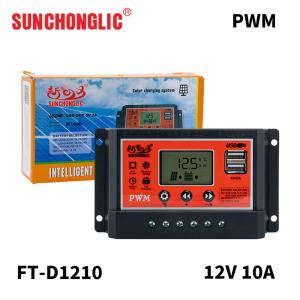

What is feature of LCD display PWM controller 12V 24V 10A 10amp manual pwm solar charge controller?
1.5V 2A USB charing interface
2.Applicable for 3 types of batteries:B01 Lead acid batttery,B02 Lithium ion battery,B03 Lithium iron phosphate battery
3.Large-screen LCD display
4.Adopt complete three phase PWM charge management (Constant current mode,Constant voltage mode,Floating charge mode)
5.Multiple protections.Overcurrent protection, Short circuit protection, Open ciruit protection and Battery reverse protection
6.Power-cut memory function.The power-cut memory function can automatically memory retention of users' last settings
>>>Product Specifications
| Model | FT-D1210 |
| Rated current | 10A |
| System Voltage | 12V/24V system is only designed for lead-acid batteries with auto sense function |
| Solar PV input maximum voltage | 12V system<25V; 24V system<50V |
| Battery Type | B01=Lead Acid Battery 12V/24V auto sense |
| B02=Lithium-ion battery 3 series 3.7V=11.1V |
| B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V |
| Charging voltage | Default*14.3V(B1)
adjustable range 13.7-14.6V |
| Low-voltage cut off voltage | Default*10.7V(B1)
adjustable range 8-11.5V |
| Low power recovery voltage | Default*12.6V(B1)
adjustable range 11.5-12.6V |
| External 12V battery recommended solar panel specifications | 100-150W/18V |
| External 24V battery recommended solar panel specifications | 150-200W/36V |
| Battery capacity recommended | 12V/24-80Ah |
| 24V/24-80Ah |
| Rated current of DC load output | 12A |
| USB Output | 5V/2A |
| Standby current | <10mA |
| Working temperatue | -35℃~+60℃ |
| Size / Weight | 133x75x33mm/152g |
| Mark:* tagged voltage only corresponds to 12V solar system,if user use 24V system,please multiply by 2 |
